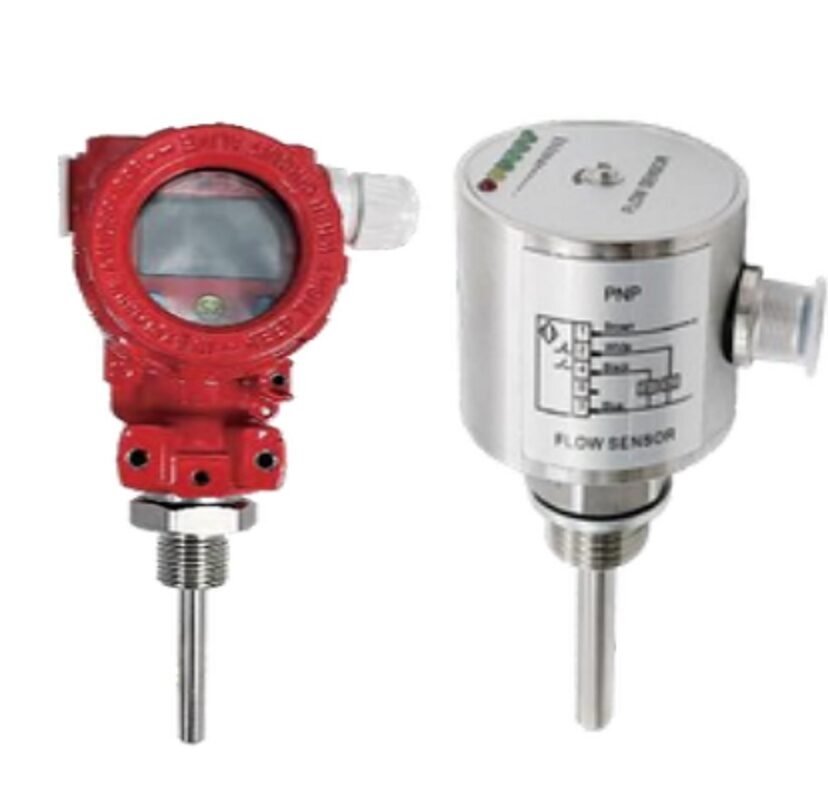

Water flow range 3–300 cm/s Gas flow range 200–3000 cm/s Oil flow range 3–300 cm/s Switch accuracy ±1 to ±10 cm/s Warm-up time 3 minutes after power-on Working pressure <100 bar Medium temperature -20°C to 80°C Process connection G1/2, G1/4 and M18 internal thread connections Output signal PNP / NPN / Relay Power supply 24 VDC, 85–265 VAC, 120–370 VDC Sensor length 15, 20, 30, 40, 50, 60 mm; customizable Setting method Potentiometer setting Response time 2–10 s Output load Current: 250 mA; Relay: 30 VDC/5 A, 220 VAC/5 A Protection IP67 Wiring M12 connector Specification VMAL Gear Box Butterfly Valve Valve type: Wafer Butterfly Valve Operation: Gearbox Working pressure: PN16 / 200 PSI Face-to-face: API 609, BS 5155, DIN 3202, ISO 5752 Flange standards: DIN, BS, UNI, ISO, ANSI, AS, JIS Mounting flange: ISO 5211 Body materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel Seat materials: NBR, EPDM, Viton, Neoprene, Hypalon, Silicone, PTFE Shaft materials: Stainless Steel 416, 316, 304 Disc materials: Ductile Iron + Ni, CF8, CF8M, Bronze Size range listed: DN50–DN1200 Applications HVAC, water & sewage, food & beverage, chemical/petrochemical, power & utilities, pulp & paper, shipbuilding

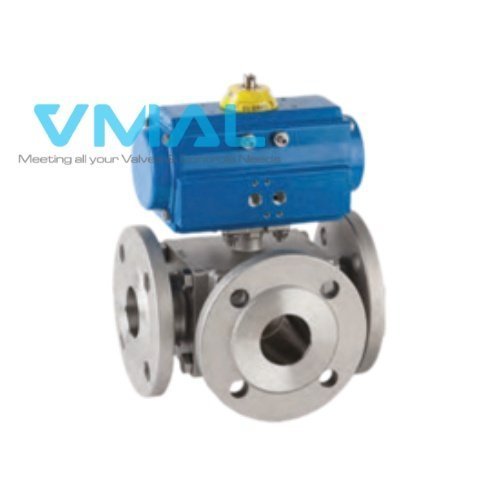

Valve type Pneumatic stainless-steel T-shaped three-way flanged ball valve Connection form Flange Nominal pressure 1.6 MPa Air source pressure 0.4–0.75 MPa Applicable temperature -20 to +150°C / -18 to +260°C Watertight seal test pressure 1.76 MPa Air-tight seal test pressure 0.6 MPa Connection standard GB/T9112-2000 Design standard GB/T12237-2007 - Valve model: VMIBSF
- Valve type: Ball Valve
- Connection: Flanged
- Nominal pressure: 1.6 MPa
- Shell testing pressure: 2.4 MPa
- Sealing testing pressure: 1.76 MPa
- Available sizes: 1/2" to 8"
- Body material: CF8
- Ball material: CF8
- Cap material: CF8
- Seat material: PTFE
- Packing material: PTFE
- Gasket material: PTFE
- Stem material: SS
- Handle material: WCB
