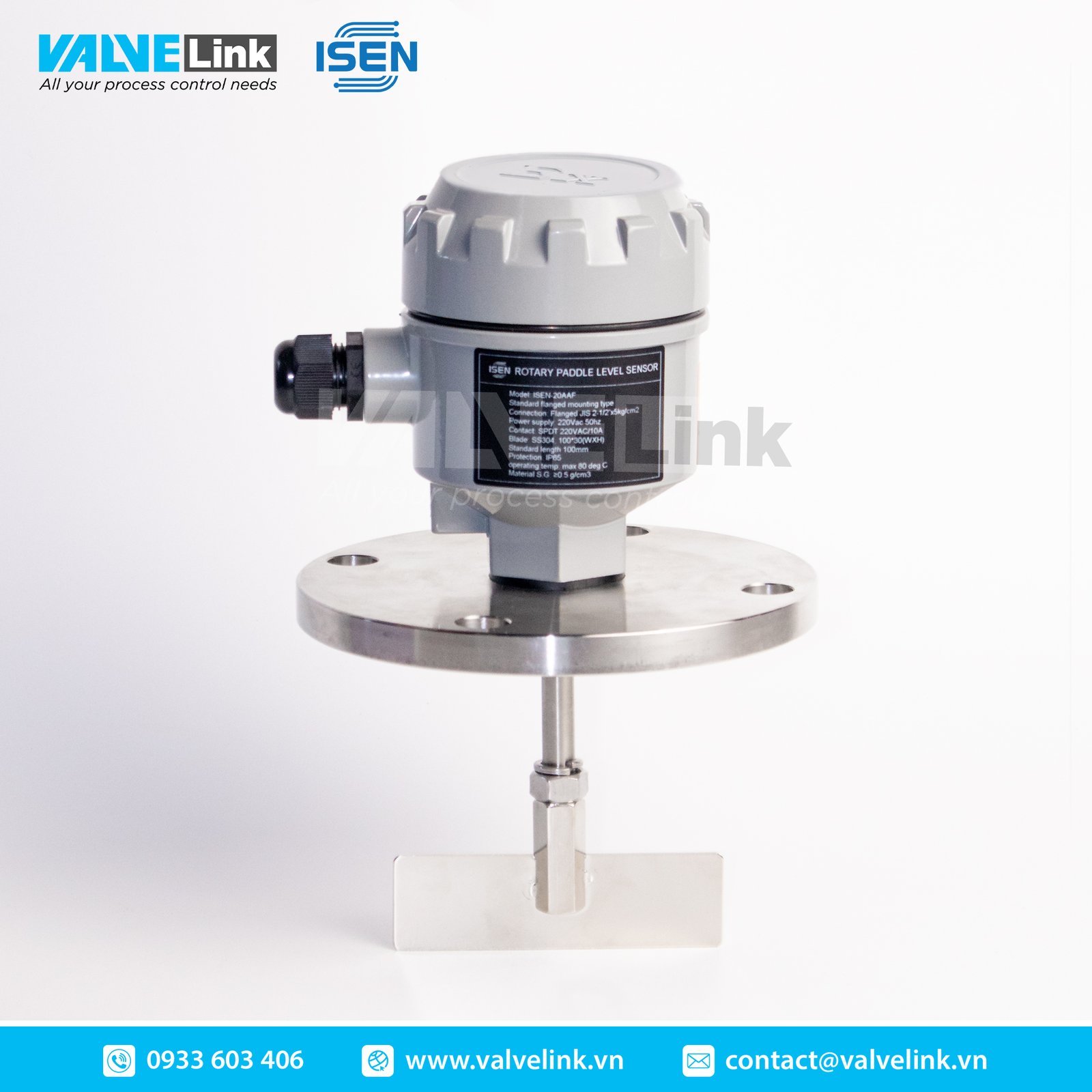

Solid Level Sensor

1. Easy installation and debugging: fully sealed integrated installation structure, all using digital integrated circuits, without any mechanical moving parts. Once installed, zero calibration does not require multiple debugging. 2. Low temperature drift: using digital electrical appliances, compared with existing products, greatly reducing the impact of ambient temperature and humidity on the instrument, no need for zero adjustment during season change. Advanced circuit design can avoid false signals caused by material adhesion to the probe, and can resist the impact of various fluctuations. 3. Strong on-site adaptability: solid and liquid materials can be detected in high temperature, high pressure, large dust, and high viscosity. 4. One-time zero calibration: due to the use of digital circuits, users can complete zero calibration once in an empty warehouse state.

• Power Supply: 220VAC / 110VAC / 24VAC / 24VDC
• Power Consumption: 4W
• Rotation Speed: 1 RPM
• Torque: 1.0 kg·cm
• Operating Temperature: −10°C ~ 80°C
• Protection Rating: IP65
• Paddle Material (Standard): SUS304
