Steam Piping Equipment

• Brand: VMAL
• Model: VMIYDF10-050/300
• Type: Y-Strainer
• Size: DN50 (2 inch)
• Body Material: Ductile Iron
• Screen Material: Stainless Steel 304
• Gasket Material: Rubber
• Connection: Flanged PN16
• Maximum Operating Temperature: 90°C

• Reliable overpressure protection: Automatically discharges excess pressure to safeguard equipment.
• Industry-standard compliance: Designed according to DIN 3320, DIN 3202, DIN 2543-2545, and tested per DIN 3230.
• Durable construction: Made from GS-C25, stainless steel, Stellite, and copper alloy for longevity.
• Versatile applications: Ideal for hot oil, steam, and water systems in industrial environments.
• Efficient installation: Can be placed in pipeline commutation to reduce welding requirements.

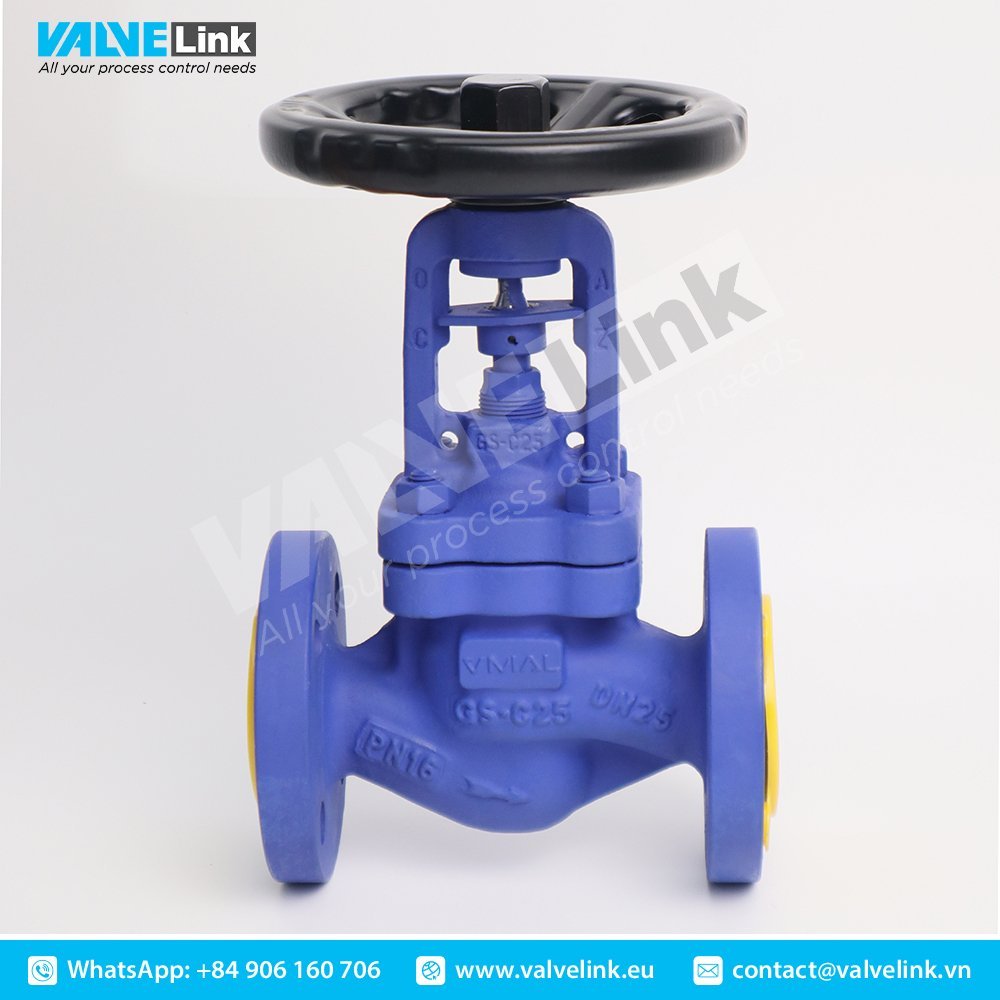

DIN Bellow Globe Valve

• Design Standard: DIN 3356

• Face-to-Face Dimension: DIN 3202

• Flanged Ends: DIN 2543–2545

• Test & Inspection: DIN 3230

ANSI Bellow Globe Valve

• Design Standard: ASME B16.34

• Face-to-Face Dimension: ASME B16.10

• Flanged Ends: ASME B16.5

• Test & Inspection: API 598

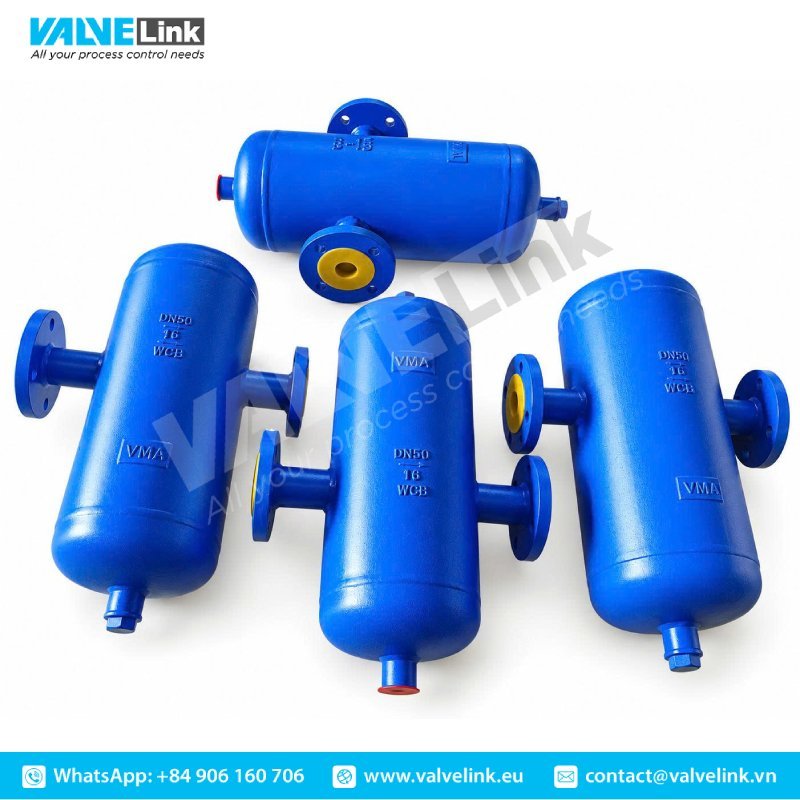

• Efficiency boost: Enhances steam dryness for better heating and energy transfer.
• Equipment protection: Prevents water hammer and protects pipelines.
• Durable build: Made from high-grade Stainless Steel and Carbon Steel.
• Versatile models: Available in Threaded (CF11) and Flanged (CF41) designs.
• Wide compatibility: Supports pressures from 0.01 to 2.5 MPa and temperatures up to 350°C.
