Model: VMIBSW16-050 WAFER TYPE BUTTERFLY VALVE Size: DN50(2â²) Connection: wafer Pressure rating: PN16 Body: SS304 Disc: SS304 Shaft: SS416 Seat: PTFE Handlever Operated (Van bÆ°á»m tay gạt inox DN50 PN16) + Model: VAX03 Power supply: AC220V 50/60Hz Drive apdater: 11 mm Output torque: 40Nm

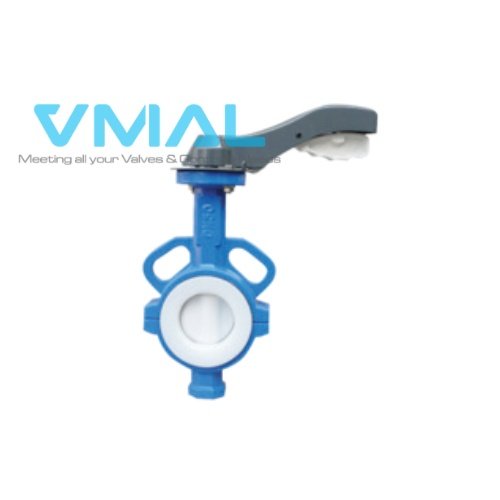

Specification CI Butterfly Valve with PTFE Seat Product type Wafer Butterfly Valve Body material Cast Iron (CI) Seat material PTFE Working pressure PN16 / 200 PSI Face-to-face standards API 609, BS 5155, DIN 3202, ISO 5752 Flange standards DIN, BS, UNI, ISO, ANSI, AS, JIS Mounting flange ISO 5211 Available sizes DN50–DN1200 listed in catalog Applications HVAC, water supply & sewage, food & beverage, chemical/petrochemical processing, power & utilities, pulp & paper, shipbuilding

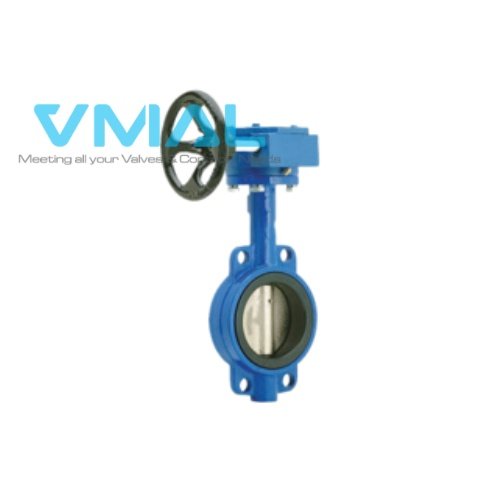

Specification VMAL Gear Box Butterfly Valve Valve type: Wafer Butterfly Valve Operation: Gearbox Working pressure: PN16 / 200 PSI Face-to-face: API 609, BS 5155, DIN 3202, ISO 5752 Flange standards: DIN, BS, UNI, ISO, ANSI, AS, JIS Mounting flange: ISO 5211 Body materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel Seat materials: NBR, EPDM, Viton, Neoprene, Hypalon, Silicone, PTFE Shaft materials: Stainless Steel 416, 316, 304 Disc materials: Ductile Iron + Ni, CF8, CF8M, Bronze Size range listed: DN50–DN1200 Applications HVAC, water & sewage, food & beverage, chemical/petrochemical, power & utilities, pulp & paper, shipbuilding

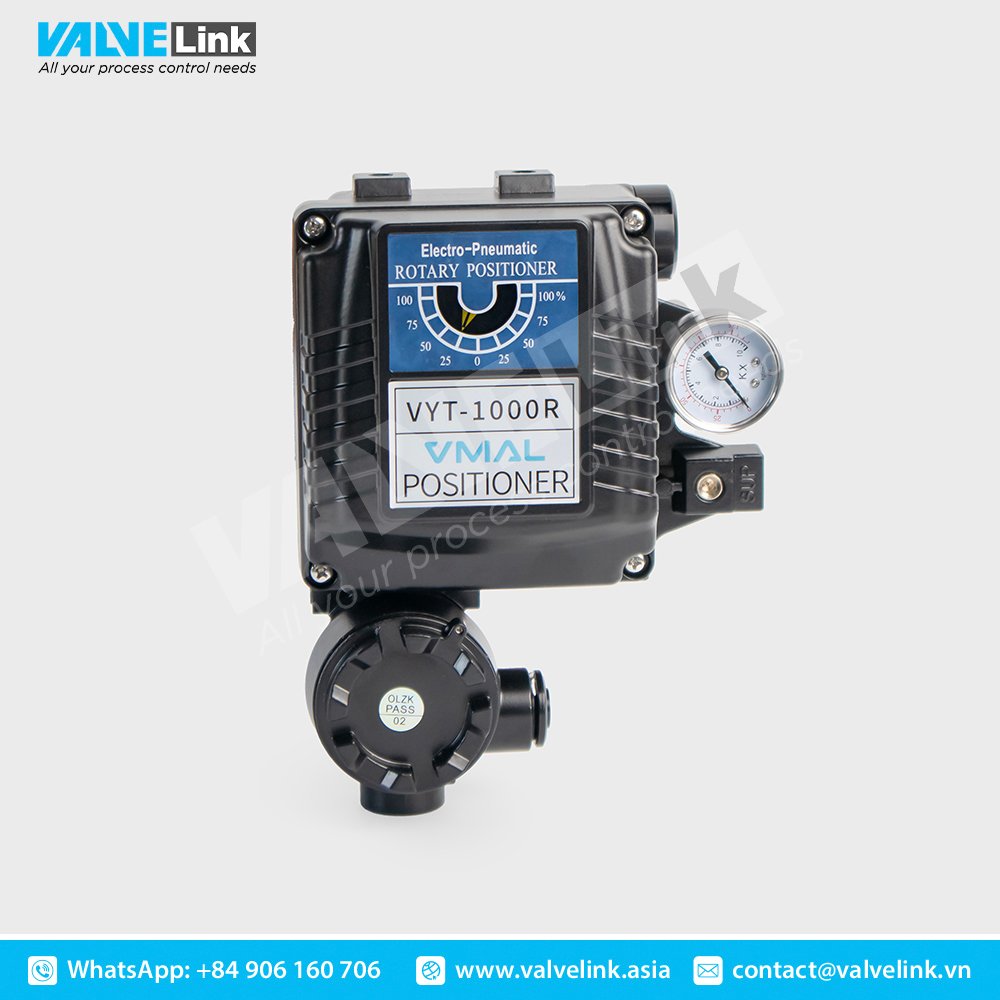

Specification Value Model VYT-1000R Product Type Electro-Pneumatic Positioner Suitable Valves Ball Valves / Butterfly Valves Control Signal 4–20 mA Signal Input 4–20 mA Supply Pressure 1.7–7 bar Air Connection G1/4″ Protection Rating IP66 Ambient Temperature -20°C to 70°C - Reliable flow control: Designed for industrial applications requiring precision and durability.
- Industry-standard compliance: Meets API609, BS5155, DIN3202, and ISO5752 standards.
- Versatile flange compatibility: Supports DIN, BS, ANSI, JIS, and other global flange standards.
- Durable construction: High-quality materials including CI, DI, SS, and corrosion-resistant seat options.
- Wide applications: Ideal for HVAC, water supply, chemical processing, and shipbuilding.
- Customizable sizing: Available in DN50 to DN1200 for various system requirements.

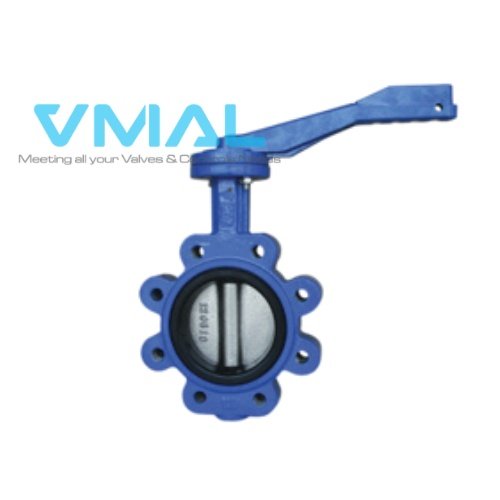

- Design: LUG type with through shaft and pin
- Standards Compliance: Compatible with various international standards
- Body Material Options: CI / DI / CS / SS
- Seat Material Options: EPDM / PTFE / VITON / NBR / Hypalon
- Working Pressure: PN16 (200 PSI) – suitable for a wide range of industrial applications
