11. VMAL Ball Valve

'- Size: DN65(/2 1/2'') -Type 2 pieces - Connection: Flanged PN16 - Ball: SS304 - Body: Steel WCB - Gasket: PTFE - Temp.max: 180*C Included: Pneumatic Actuator type double acting

Model: VQ641F-16C Pneumatic Carbon steel Control ball valve with flanged – Size: DN65(/2 1/2”) -Type 2 pieces – Connection: Flanged PN16 – Ball: SS304 – Body: Steel WCB – Gasket: PTFE – Temp.max: 180*C + Model: VAX10 VMAL Electric Actuator Power supply: AC220V 50/60Hz Drive apdater: 14/17 mm Output torque: 100Nm

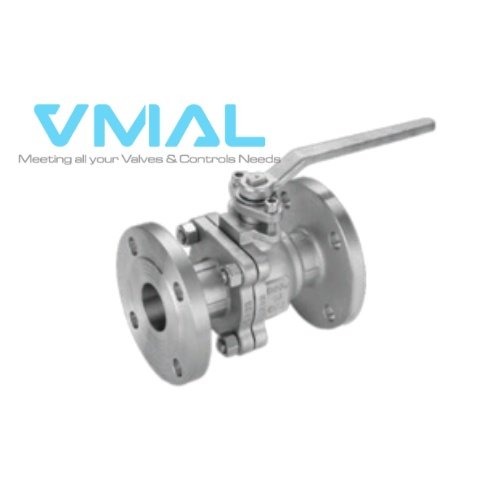

• Valve model: VMIBSF
• Valve type: Ball Valve
• Connection: Flanged
• Nominal pressure: 1.6 MPa
• Shell testing pressure: 2.4 MPa
• Sealing testing pressure: 1.76 MPa
• Available sizes: 1/2" to 8"
• Body material: CF8
• Ball material: CF8
• Cap material: CF8
• Seat material: PTFE
• Packing material: PTFE
• Gasket material: PTFE
• Stem material: SS
• Handle material: WCB

• Efficient maintenance: Three-piece design allows in-line inspection and easy seat replacement.
• Full bore design: Ensures unrestricted flow and minimal pressure drop.
• Industry-standard compliance: Meets ANSI/ASME B16.34, API 598, and ISO 7/1 standards.
• Versatile connection options: Available with threaded and socket welding ends.
• Durable construction: Stainless Steel ball, SS410 stem, and PTFE seat for longevity.
• Wide applications: Ideal for chemical processing, oil & gas, water treatment, and industrial piping.
