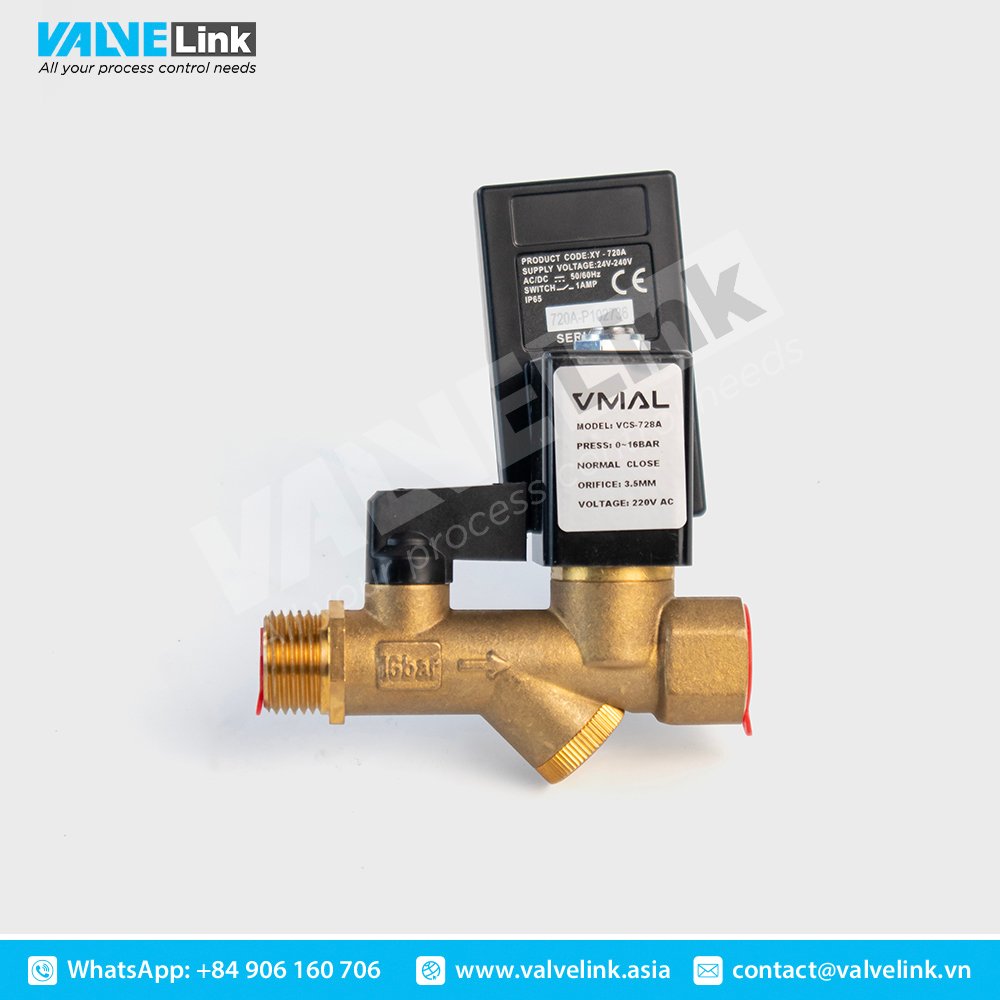

Specification Value Model VMCS-728A Product Type Automatic Drain Valve Orifice Size 3.5 mm Operation Normally Closed (NC) Power Supply AC/DC 24–240 V ±10% Power Consumption AC 22 VA / DC 20 W Working Pressure 0–16 bar Working Temperature 0°C–80°C Body Material Brass Seal Material NBR / VITON - Automatic condensate discharge without manual operation.
- Mechanical float and lever operating mechanism.
- No electrical power or external control required.
- Compact ball-type design for space-saving installation.
- Direct threaded installation on the pipeline.
- Reliable operation with minimal maintenance.
- Suitable for industrial condensate drainage applications.

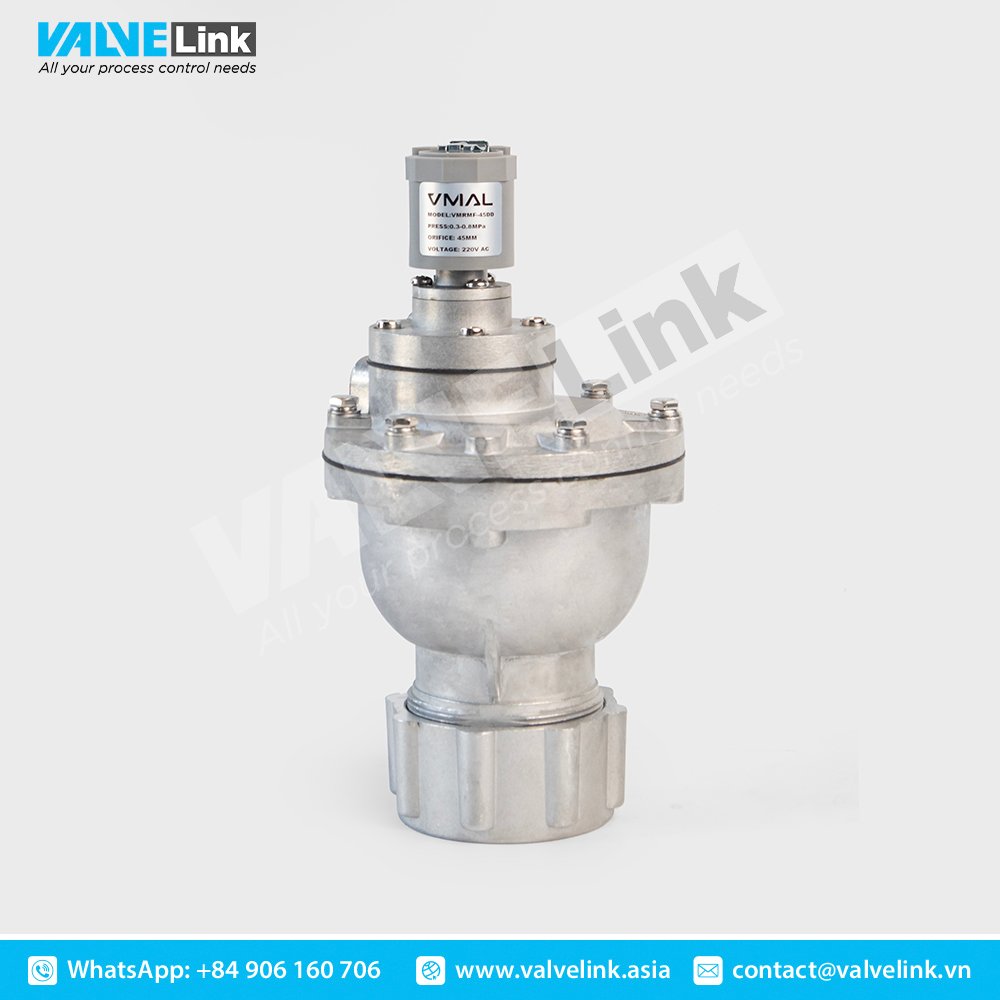

Specification Value Model VMRMF-45DD Valve Type Right Angle Solenoid Pulse Valve Port Size Ø50 Body Material Aluminum Working Pressure 0.3–0.8 MPa Ambient Temperature -5°C to +55°C Relative Humidity < 85% Working Media Clean Air Power Supply 220 V Connection Type Insert Pipe Type VMAL – Ball Valve Ball Valve is a quarter-turn valve designed to control the flow of liquids and gases in piping systems. It uses a spherical ball with a central opening to start, stop, or isolate the flow quickly and efficiently. With a simple operating
- Brand: VMAL
- Model: VMIYDF10-050/300
- Type: Y-Strainer
- Size: DN50 (2 inch)
- Body Material: Ductile Iron
- Screen Material: Stainless Steel 304
- Gasket Material: Rubber
- Connection: Flanged PN16
- Maximum Operating Temperature: 90°C
- Reliable backflow prevention: Self-sealing design ensures operational safety.
- Versatile installation: Spring-loaded disc allows horizontal, vertical, or angled mounting.
- Industry-standard compliance: Designed according to DIN 3356, DIN 3202, DIN 2543-2545, and tested per DIN 3230.
- Durable construction: Made from GS-C25, stainless steel, Stellite, and flexible graphite for longevity.
- Wide applications: Ideal for hot oil, steam, and water systems in industrial environments.
- Reliable overpressure protection: Automatically discharges excess pressure to safeguard equipment.
- Industry-standard compliance: Designed according to DIN 3320, DIN 3202, DIN 2543-2545, and tested per DIN 3230.
- Durable construction: Made from GS-C25, stainless steel, Stellite, and copper alloy for longevity.
- Versatile applications: Ideal for hot oil, steam, and water systems in industrial environments.
- Efficient installation: Can be placed in pipeline commutation to reduce welding requirements.
Specification Value Model VAX03 Output Torque 40 Nm Rotation Angle 0°–270° Operating Time 9 s / 10 s / 18 s Motor Power 7 W or 8 W Weight 2.35 kg Protection Rating IP67 Ambient Temperature -25°C to +60°C Housing Material Die-cast Aluminum Alloy Insulation Resistance DC24V: 100 MΩ / 300 VDC; Other Power Supplies: 100 MΩ / 500 VDC Optional Features Over-torque Protection, Anti-Condensation Heater
