EQUIPMENT ON STEAM SYSTEM

• Reliable overpressure protection: Automatically discharges excess pressure to safeguard equipment.
• Industry-standard compliance: Designed according to DIN 3320, DIN 3202, DIN 2543-2545, and tested per DIN 3230.
• Durable construction: Made from GS-C25, stainless steel, Stellite, and copper alloy for longevity.
• Versatile applications: Ideal for hot oil, steam, and water systems in industrial environments.
• Efficient installation: Can be placed in pipeline commutation to reduce welding requirements.

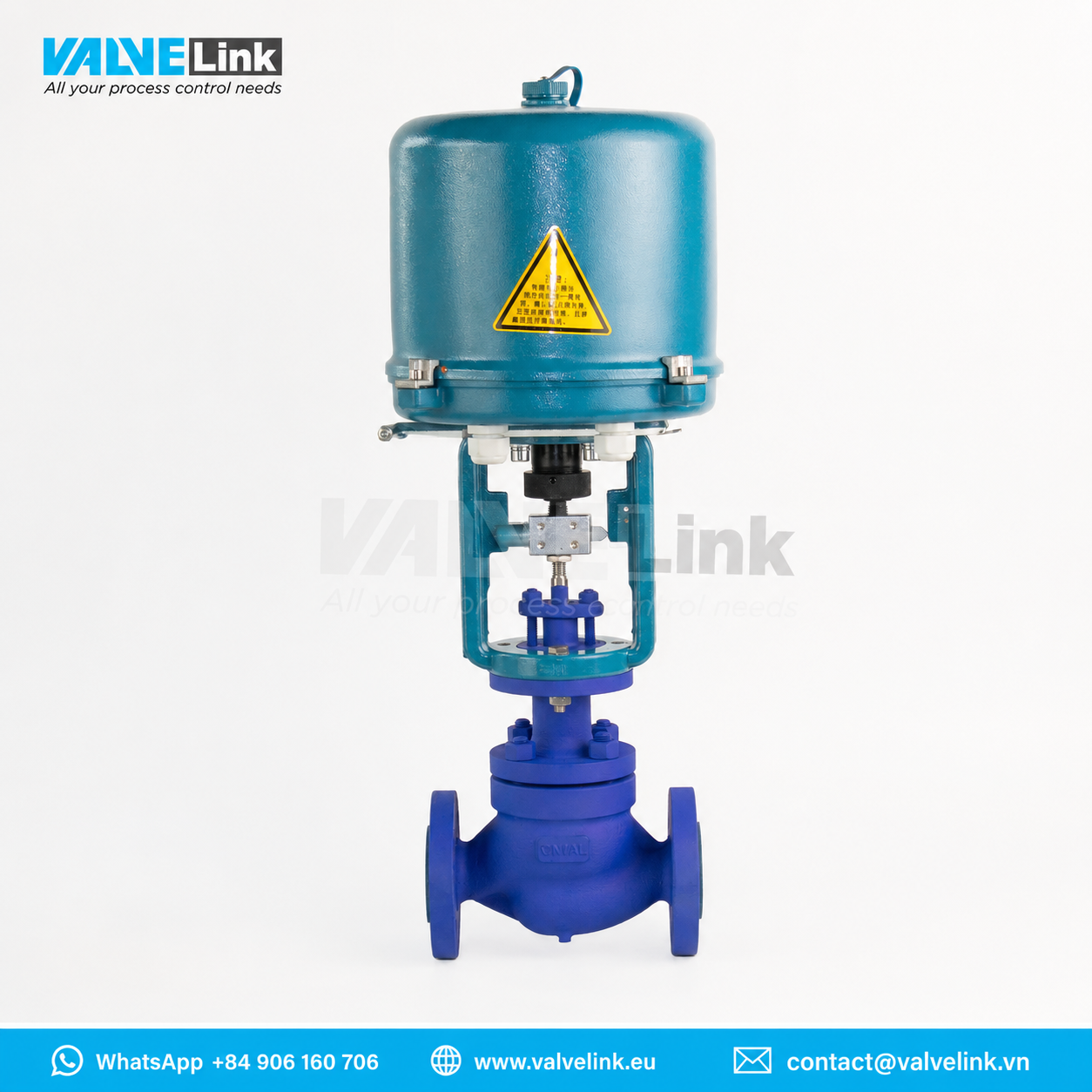

• • High-precision control: Offers a turn-down ratio of up to 50:1 for superior flow management.
  • Durable construction: High-strength valve body built for demanding industrial applications.
  • Flexible sealing options: Includes maintenance-free stem seals and optional bellow seal.
  • Advanced electric actuation: PREMIO actuator ensures precise motor control and high protection (IP65).
  • Robust safety features: Built-in torque and limit switches enhance reliability.
  • Versatile system integration: Compatible with various automation and pneumatic actuation setups.

• Body, Bonnet: Carbon steel, stainless steel
• Floating Ball: Stainless steel
• Seat: Stainless steel
• Internal Filters: Stainless steel
• Gasket: Stainless steel+Flexible graphite

DIN Bellow Globe Valve

• Design Standard: DIN 3356

• Face-to-Face Dimension: DIN 3202

• Flanged Ends: DIN 2543–2545

• Test & Inspection: DIN 3230

ANSI Bellow Globe Valve

• Design Standard: ASME B16.34

• Face-to-Face Dimension: ASME B16.10

• Flanged Ends: ASME B16.5

• Test & Inspection: API 598

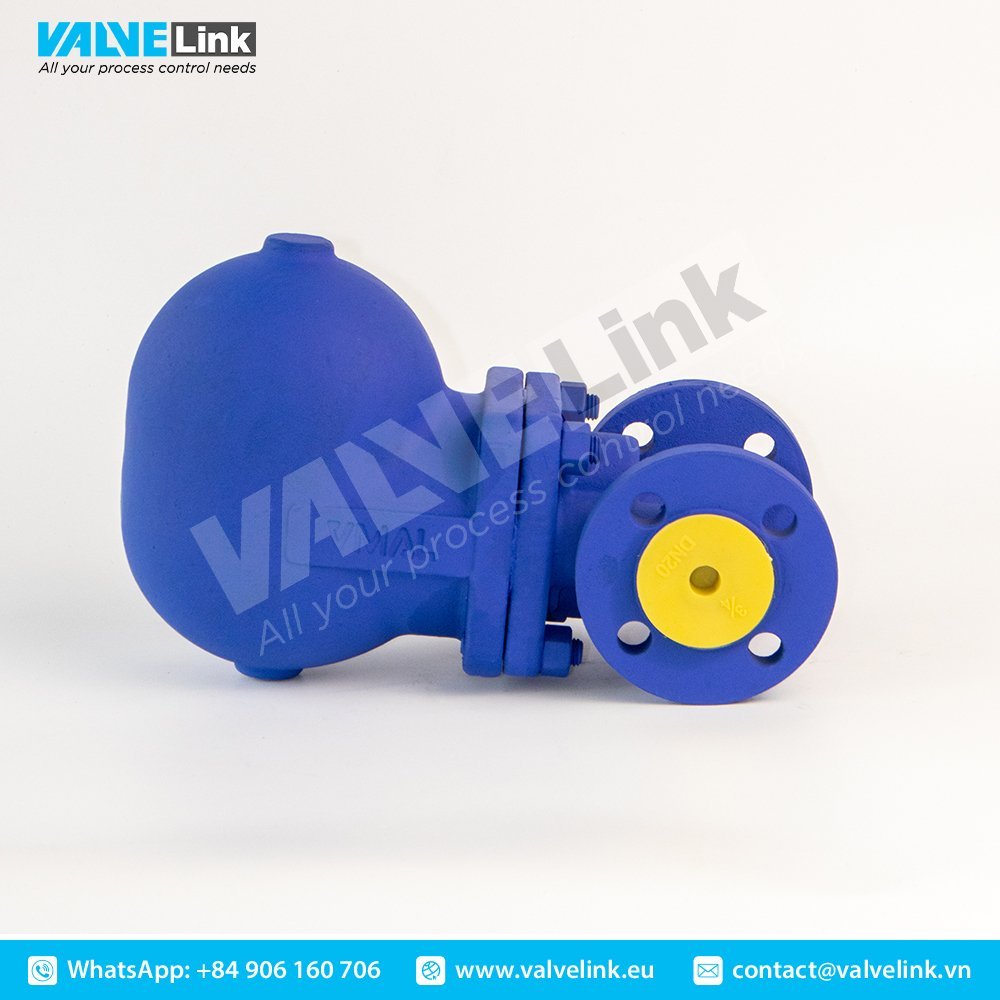

• Brand: VMAL
• Models: VFT14-16C, VFT44-16C
• Type: Mechanical Float Steam Trap
• Body Material: Cast Carbon Steel
• Float, Seat, Strainer Material: Stainless Steel
• Air Vent Component: Kazak Alloy
• Size Range: DN15 - DN25
• Connection Type: Threaded, Flanged
• Maximum Operating Pressure: Up to 16 barg
• Maximum Operating Temperature: Up to 400°C

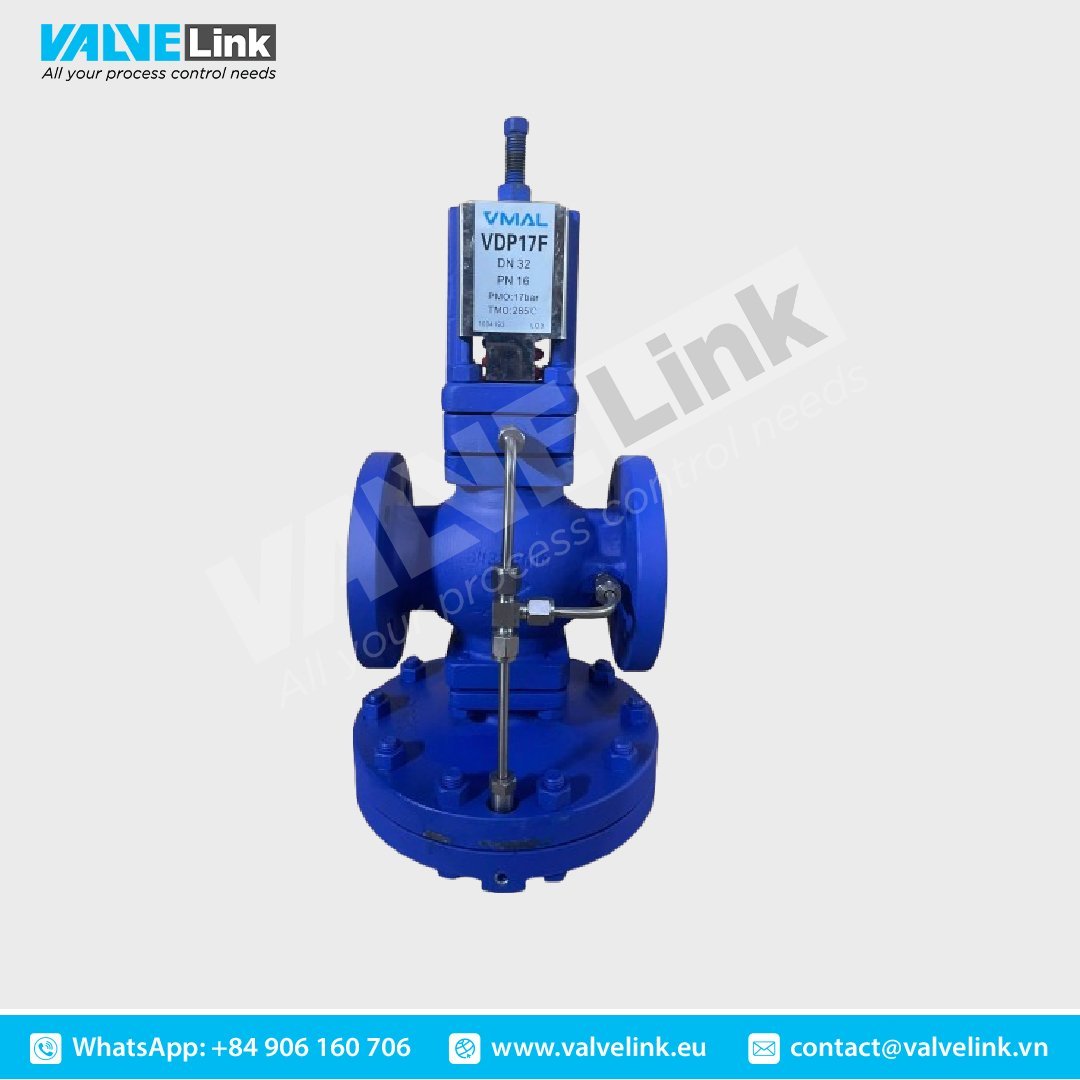

• Precise pressure control: Manages inlet pressures up to 25 bar with outlet adjustment options.
• Flexible pressure settings: Uses a color-coded spring system for adjustable outlet pressure (1-12 bar).
• High-temperature capability: Operates effectively from 0 to 285°C.
• Durable construction: Built with high-quality materials like WCB, 2Cr13, and 1Cr18Ni9 for reliability.
• Industry standard compliance: Meets GB12244 testing and inspection standards with DIN, ANSI, and GB flange options.
• Versatile applications: Ideal for hot oil, steam, and water systems in industrial environments.

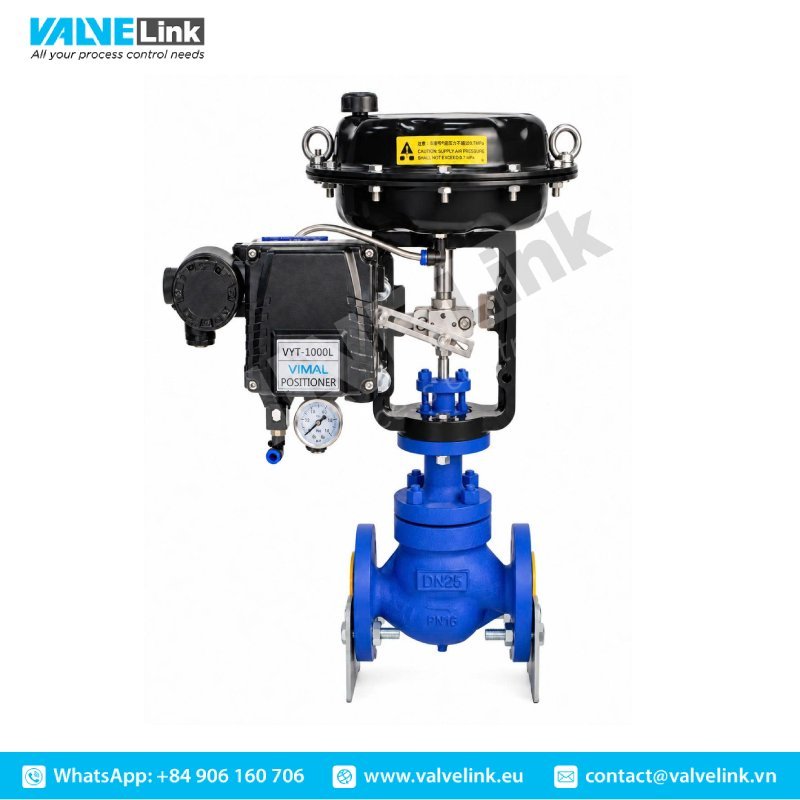

• Valve Type: Pneumatic Control Globe Valve
• Size: DN25 (1 inch)
• Connection: Flange PN16 RF
• Body Material: Carbon Steel
• Plug Type (Trim): EQP (Equal Percentage)
• Max Operating Temperature: 250°C
• Max Permissible Pressure Drop: 10 barg

• Efficiency boost: Enhances steam dryness for better heating and energy transfer.
• Equipment protection: Prevents water hammer and protects pipelines.
• Durable build: Made from high-grade Stainless Steel and Carbon Steel.
• Versatile models: Available in Threaded (CF11) and Flanged (CF41) designs.
• Wide compatibility: Supports pressures from 0.01 to 2.5 MPa and temperatures up to 350°C.

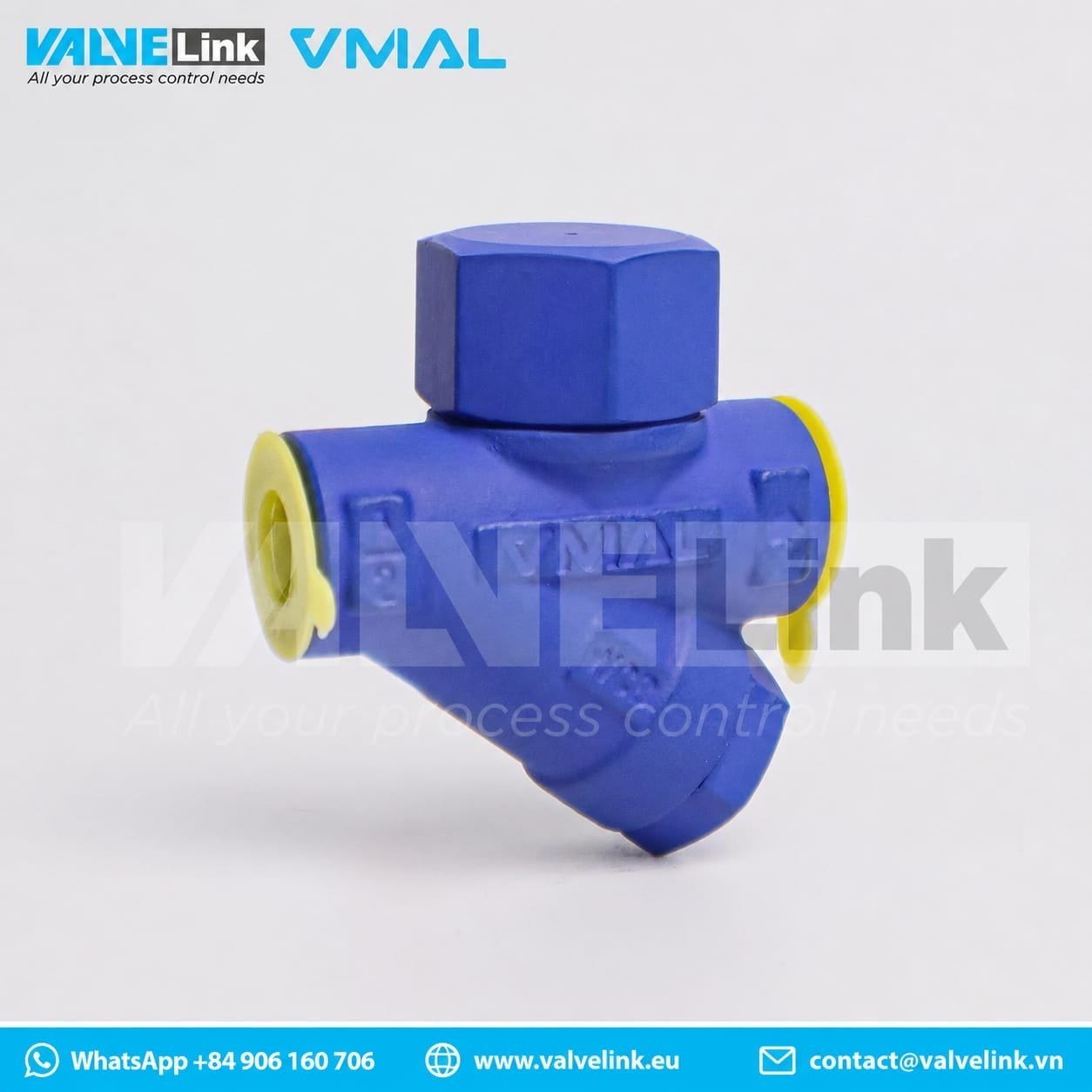

• Brand: VMAL
• Model: VTD42-16C
• Type: Thermodynamic Steam Trap (Disc Type)
• Body Material: Carbon Steel
• Size Range: DN15 - DN25
• Connection Type: Threaded, Flanged
