- Reliable backflow prevention: Self-sealing design ensures operational safety.
- Versatile installation: Spring-loaded disc allows horizontal, vertical, or angled mounting.
- Industry-standard compliance: Designed according to DIN 3356, DIN 3202, DIN 2543-2545, and tested per DIN 3230.
- Durable construction: Made from GS-C25, stainless steel, Stellite, and flexible graphite for longevity.
- Wide applications: Ideal for hot oil, steam, and water systems in industrial environments.

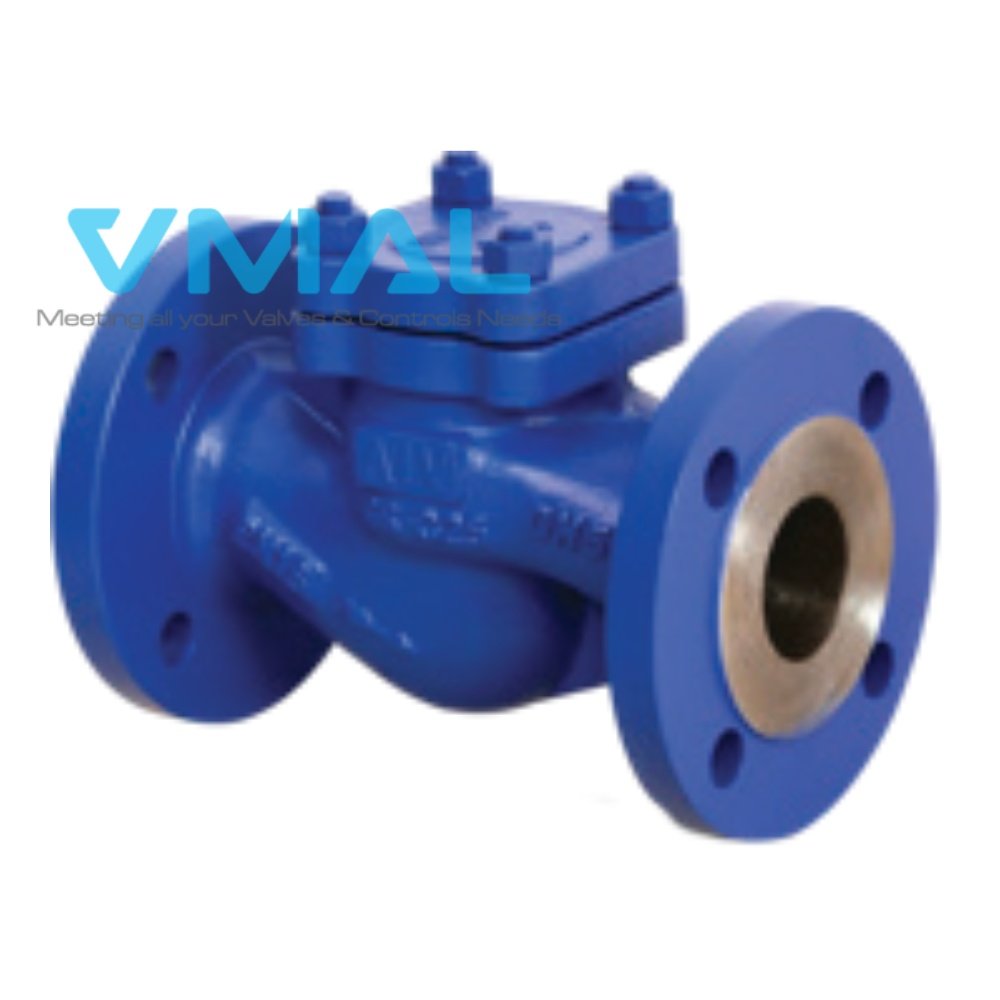

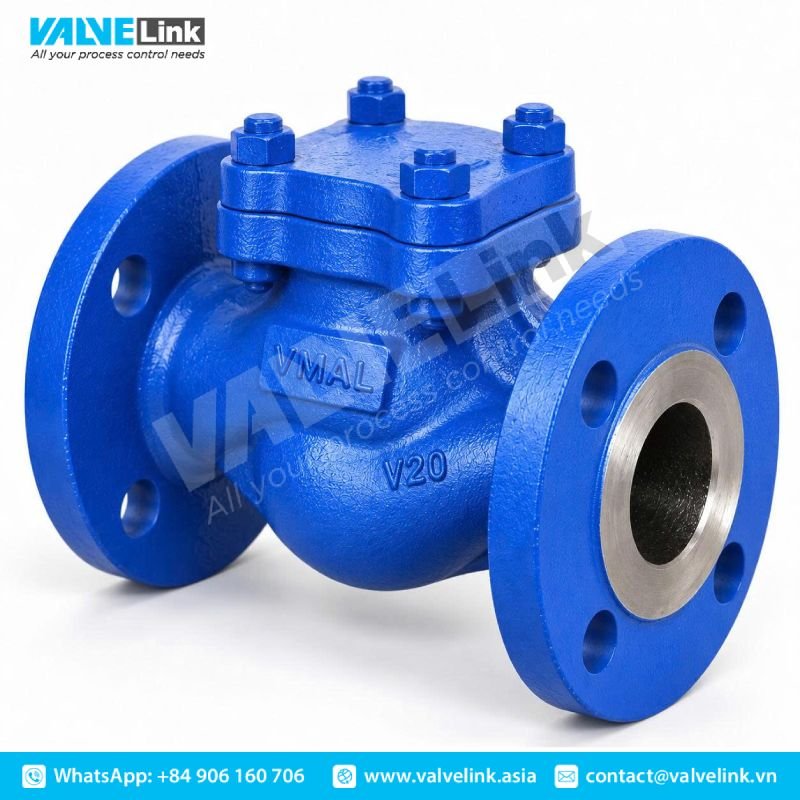

VMAL DIN Lift check valve
Description
For businesses seeking robust and reliable flow control solutions, Valvelink Europe is proud to introduce the VMAL DIN Lift check valve. This self-sealing valve is meticulously engineered to prevent backflow in critical systems, ensuring operational safety and efficiency. Its superior design and quality materials make it an ideal choice for a wide range of industrial applications.
The VMAL Lift check valve is distinguished by its intelligent design features. The valve operates automatically, with a disc that acts against the media flow to prevent reversal. A key advantage is its spring-loaded disc, which allows the valve to be installed and function effectively in any orientation—vertical, horizontal, or otherwise. This versatility simplifies system design and installation. Customers can expect a valve with a rational structure, dependable sealing, excellent performance, and an appealing design.
Engineered for Excellence: Technical Specifications and Quality Materials
The VMAL Lift check valve adheres to rigorous German Industrial Standards (DIN), guaranteeing quality and interoperability.
Technical Specifications:
- Design Standard: DIN 3356
- Face-to-face Dimension: DIN 3202
- Flanged Ends: DIN 2543-2545
- Test & Inspection: DIN 3230
The durability and performance of this Lift check valve are rooted in its high-quality materials. Valvelink has selected robust materials for each component to ensure longevity and reliability, even in demanding environments.
Main Part Materials:
| Part Name | Material Options |
| Body | GS-C25, 1.4301, 1.4408 |
| Cover | GS-C25, 1.4301, 1.4408 |
| Disc | 1.4021, 1.4301+Stellite |
| Seat | 1.4301, Stellite |
| Spring | 1.4301, 1.4401 |
| Gasket | Stainless steel + Flexible graphite |
| Bolts & Nuts | ASTM 193-B7/A193-B8 & ASTM 194-2H/A194-8 |
Versatile Applications
The robust construction and reliable design make the VMAL Lift check valve perfectly suited for various systems, including:
- Hot oil systems
- Steam systems
- Hot and cold water systems
The VMAL DIN Lift check valve from Valvelink is a premier choice for businesses that require dependable, high-performance valves. Its adherence to DIN standards, quality construction, and versatile design ensure it meets the complex needs of modern industrial systems.
